Hi All, I have a boot seal from rimmers but it doesn't let my boot close, It's ok at the top and sides but at the bottom edge I can't get it near the lock (ok without the seal) the seal is an h shape and is quite rigid, thoughts please. Regards Ron
-
Hi All, I have a body bracket for the telescopic boot stay but don't know the location, could someone post a photo with a tape measure for reference of this item please. Regards Ron
-
Hello, I am drawing to the end of taking my gearbox out, replacing seals, and refitting. As part of this project I have the car on axle stands and was going to run the car to allow the new oil to circulate the gearbox and overdrive. However, upon starting the car the idle speed just keeps going up and up and something is clearly wrong. I have backed off the fast idle screws completely, ensured that the choke screws are not engaging, and checked the oil in the dash-pots to no avail. As I have done nothing to interfere with the engine or HS6 carburettors recently I am at a loss as what could have changed and need some help please. Many thanks.
-
I have a load of original Girling 16P brake calipers that are about to be refurbished by Bigg Red. I have had one pair finished in black to go behind the black wire wheels on my BRG racecar. my plan is to have these plated (not painted) in either the original type gold or silver. There will be new pistons and seals etc. Basically, they will be fully reconditioned and ready to fit. The point of this post is to ask that if anyone is looking for a pair and wants then done in a particular finish, let me know as I will be taking to be done next week. Price depends on finish. Final point is that these are original castings and not the repro ones!! David
-
Hi Forum, I am currently working to replace various seals on my TR4 gearbox in the vain hope of stopping drips. So I do not make an error in copying a previous owners mistake may I ask about replacing the oil seal in the gearbox nose/input shaft. Should the new oil seal sit in the base of the nose housing or does it simply sit flush with the upper surface. I think it might be tapered and so the seal will not seat all the way down but I want to be sure as the new one does not want to go in too far. The workshop manual and internet do not seem to give me any pictures to help. Many thanks Mark
-
Hi Everyone, A quick set of related questions. Whilst draining the aluminium fuel tank on my 1964 TR4 ready to install R9 grade fuel hose everywhere, I hadn't opened the fuel tank cap and noticed that when I did it hissed as the lid was raised. The tank was less than half full. Is there a vent anywhere? Do I have anything to worry about? I am hoping that flow to standard layout Strombergs will not lead to disaster in normal flow demand from the tank. Am I correct, or is there a vent somewhere that I need to sort out? Fuel cap is standard flip up type. Best wishes Willie
-
Hi , I have an early tr4 myself (chassis around 6800). After some research, it turned out that my tr4 must have instruments with long needles. This like the tr3. My question was what about the lighting? My instruments (with short needles) have a light for each on the back. The tr3 instruments have two central lights, I thought. Is this correct? So for my tr4, do I have to have instruments with long needles and the system of two central lights (TR3) or the back of the new model (short needles TR4) and the front of a TR3 (convex glass, long needles). I hope someone can help me out :).
-
Any one out there tried these? They also do a rear wing repair section which I guess will do TR4-6. https://www.ebay.co.uk/itm/61-68-Triumph-TR4-TR4A-TR250-RH-Front-Fender-Wing-Repair-Panel-New-Free-Ship/123054546890?hash=item1ca69f5fca:g:Y70AAOxydyxSP2EY
-
Good afternoon everyone. I am about to undertake overhaul of the rocker gear on my 1964 TR4 and wondered if there is any reason why I shouldn't use split pins instead of Mills pins to secure the end caps to the rocker shaft. It appears to be standard on 6 cylinder engines. 3/32 size appears to fit the larger engine. Same size holes on 4 cylinder? Many thanks in anticipation Willie
-
SOLD SOLD SOLD
-
Gents, before I find the energy to post it in the Classifieds here is my restored aluminum surrey hardtop surplus to requirement. It's complete with seals; headlining; braces; SS trim; original fixing points/threads and knobs. Painted in Silverstone grey, it will nicely combine with any of the standard TR colors. I concur that £ 900 isn't cheap but rare enough in this condition and a direct fit. Please PM for details and more pictures. Cheers
.thumb.jpg.41d6b53b95e247e4ebe51770520e6bfa.jpg)
.thumb.jpeg.1e637689a1c422e0048203243e4aa2d4.jpeg)
.thumb.jpg.56d7870392e9cd8cfb1eeed48ad2efa9.jpg)
-
Since a while there is a noise when I am driving over a bump or a hole. With the front wheels there is no problem. The sound is only there when I ride over it with the rear wheels. Can it be the rear shock absorbers? The exhaust is also properly attached. If I push the back of the car (when it is standing still) there is nothing to be heard. Only when driving over a bump or hole. Does anyone have an idea what this could be?
-
My tr4 is lower on the driver's side. If I measure the distance from the ground to the chassis, it is the same height. The chassis is not damaged and has not had an accident. If you look at the car you can see it is lower on the driver's side. Almost 1.5 inches I think. In the meantime we have replaced the springs and the buses of the triangles but still standing lower. Can someone help me to fix this? The car is driving perfectly but it's a pity of the hight.
-
Probably the wrong place for this topic/post. However, I have this one cluttering up the workshop and am open to any sensible offers via eBay. I’d love it to go to a new home. https://www.ebay.co.uk/itm/Lucas-ammeter-Range-Rover-classic-Triumph-Morris-Austin-50-0-50/254270361591?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2060353.m1438.l2649 if it’s of interest, please make an offer, whatever you feel it’s worth to you. David
-
Hi All A very quick question; does anyone know if the metal dash is different between the TR4 and the TR4A (aside from the fact the TR4A has the additonal veneered bit)? I want to put a TR4 metal dash on a TR4A and need to make sure the instruments and switches will still all fit. As usual, thank you all in advance!!! Adam
-
Grateful if someone would let me know where the engine earth strap is. Just wanted to check it but can’t see it fo the minute. Thanks JJC
-
Hi Folks, yesterday I renewed the battery on my '64 TR4 and the guy tested the battery under load [engine running, lights on]. It gave 13.8 volts so all well. However, the alternator conversion is causing the ammeter to give a significant apparent discharge. Does anyone have details of wiring which correct the ammeter reading to include alternator input? Pic attached of the ammeter with engine running and lights on. Best wishes Willie
-
What are people's thoughts on the oil change intervals for a gearbox with J type overdrive. It was 6 years ago when I last did a change but only 6000 miles since. Should I change due to the time or not bother yet because of the low mileage. Another conundrum for cars that cover low mileages!
-
Hello All, I think have read every post relating to wire wheels and genuine minilites. Although I haven't seen this topic brought up and I am keen to hear people's thoughts. Currently I have 72 spoke 5.5 inch wires on my TR4A although the wheels are in great shape, I am not a huge fan of wires. I am tempted by genuine minilites, however discussion regarding Dunlop's M-Type wheel has stirred my interest enough to raise this topic and seek other members opinions. The thing is that I have always loved the "world" badge that comes with the TR4A and as the steel wheels with hubcaps has this emblem on it they would be my preferred choice over wires or minilites. However the issue is that the steels only come in 4.5 inches width (I am fairly surr you can't get 5.5 inch steel wheels and fit these hubcaps?) and my understanding is that the strength and quality of these steel wheels is questionable, particularly when compared to something like a genuine minilites. So here are my questions... If money was not a consideration, could someone buy Dunlop M-Type Wheels and have the "world" hub caps retro fitted to them? And even if this was possible would they be considered crazy for modifying a wonderful set of alloys? I am really keen to hear people's thoughts on this. Regards. Paul
-
I'm planning to replace my cam followers and am wondering which is best- uprated (with drain hole for oil) Tuftrided, which I'm thinking are the black coloured ones I've seen, or 'ordinary'. Any help would be appreciated. James
-
I just want to double check recommended oil grades for my TR4 engine was re built 2years ago & I have been using Penrite 10W-50 extra zinc full mineral which I think is correct just had the gearbox & J type overdrive re furbished - believe EP 90 GL4 is the correct oil but some people use the same as the engine as I understand - is the Penrite ok? and for the diff - not been re built but still performing ok - what should i use? and want to re-do the uprated lever arm dampers - what is the best oil grade for them? any advice would be much appreciated Graeme
-

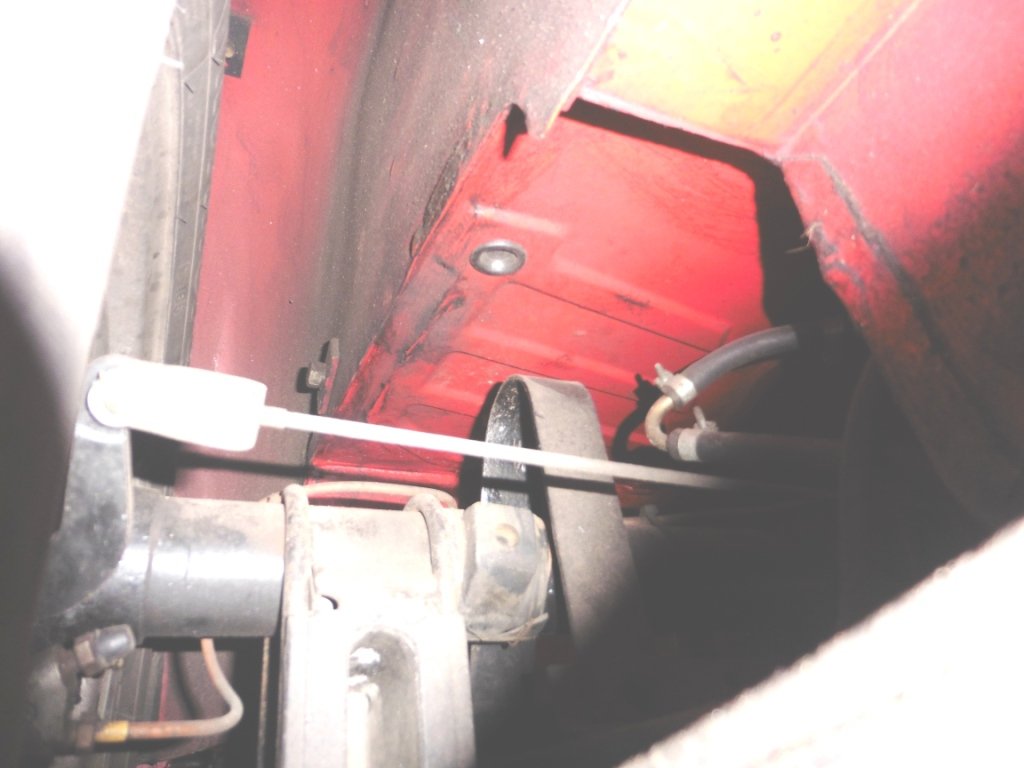

Hi Everyone, Why do I always find jobs not referred to in various workshop manuals?? Yesterday on a good hill climbing day out in S Wales more than once we experienced very obvious bottoming out. I was trying to assess if the bump stops have turned round with the raised surfaces pointing to front/back instead of up/down. The parts book seems to show the shoulders [with the hole] pointing upwards. Can anyone supply a decent shot or diagram which will give me confidence to know I have got it right? Also, I am considering fitting poly bumps. Is this a good idea? I attach a shot of the NS which shows the hole in the bump stop pointing backwards not downwards. Should the rubber be under the check strap? Best wishes Willie
-
Hi all, I have a small issue with the running of my TR4 and would welcome your thoughts - mindful of the potential range of solutions. During normal road use I find that there is some slight hesitation when I decelerate fully and then accelerate again. I find that if I enrich the mixture on the HS6 SUs then the hesitation goes, but I am left with blackened spark plugs, indicating that it is too rich. I can find no problems with inlet manifold sealing, the gaps on plugs and points seem good, there is oil in the dashpots, and the car idles nicely. Hard acceleration is OK but I would like to improve the smooth driving if possible. I wonder if I need to alter the timing or something else? Many thanks Mark
-
Long story (there’s a post way back) but in short what it’s doing now is starting, running on 4, blip throttle, backfires both ends, back carb starts flooding. In getting to where we are everything obvious has been tried and everything that could go wrong has. yes there is fuel, yes there is spark, no the timing isn’t out. Yes I have replaced the float chamber jets. Yes the carbs were set up properly. Yes the plugs were replaced and are not faulty (unlike the previous set of new plugs). It’s a mystery and it’s getting on my nerves Thank goodness the 6 works JJC
-

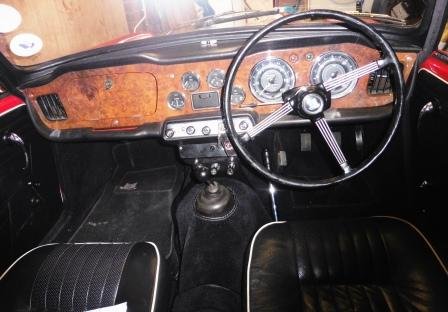

Hi All, I was challenged the other day - the indicator switch on my TR4 is on the wrong side, quoth he! My non-overdrive has the stem on the left. He said it should be on the right. The original handbook states that it is on the "inboard side of the steering column cowl, [and shows it there in the labelling of Instruments & Indicators, both LHD and RHD]. I sent a tech query to Moss and Adam replied thus...."I have always known the switch to be mounted on the right side as sitting in the driver's seat in a RHD car. As a family we have a Mk3 Spitfire, Mk1 Vitesse and a TR6 all with overdrive and the indicator switches are all on the right side of the column, same side as the column overdrive switch. > Our schematic shows it on the right side too." Bill Piggott's originality tome describes it as being on the steering column on the opposite side to the optional overdrive. My gut feel is that makes it on the LEFT as mine is. I suspect there is a danger of parts books favouring US cars due to the overwhelming number of LHDs to RHDs. Pic attached of my car's twig. I look forward to expert opinion! Best wishes Willie
.jpg.565fe534c9551d8ae58be1d50a45573b.jpg)
.jpeg.a888b8ca77fb88b916a1040685449714.jpeg)
.jpg.6eb2cb8fe59dd9d59f263804ba9e4dc8.jpg)
