Hi all,

I've had my battery out for a while and my electrical work has taken FAR too long to complete.

Can someone please translate the switch positions (1-4) in the attached AAW wiring diagram to the actual key positions in the switch?

My switch has the off position at 12 o'clock, an 11 o'clock position, a 1 o'clock position and the 2-ish momentary position for starting.

I am managing to confuse myself with the switch wiring!

Thanks.

tr4 wiring diagram.pdf

Posted (edited)

Those numbers are the pin numbers Jim, not the operating positions.

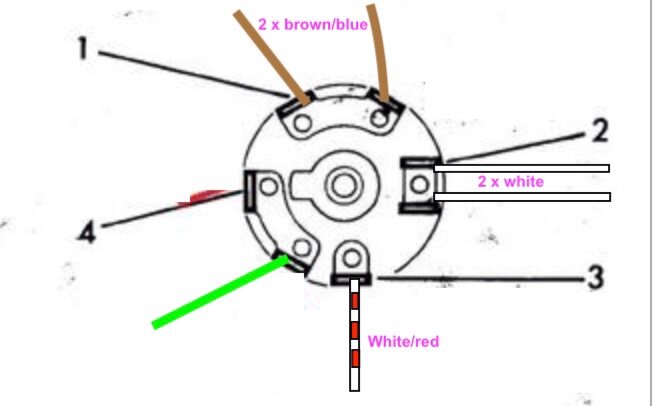

I believe your switch is connected like this (the green wire could go on either of the two tags at '4'):


11 o'clock  1>>4.        (auxilliary power to instruments etc only )

12 o'clock OFF no connections

1 o'clock  1>>2 & 4.      ( ignition on - normal running)

2 o'clock 1>>2 & 3       (ignition on - cranking)
