Rear wing badges AGAIN

[roy53]

I have reached the point of drilling new wings for these

I have seen so many different positions of these

so is there an original 5 with known as factory wings out there

Having owned my 5 for 50 years but am sure it has replacement wings

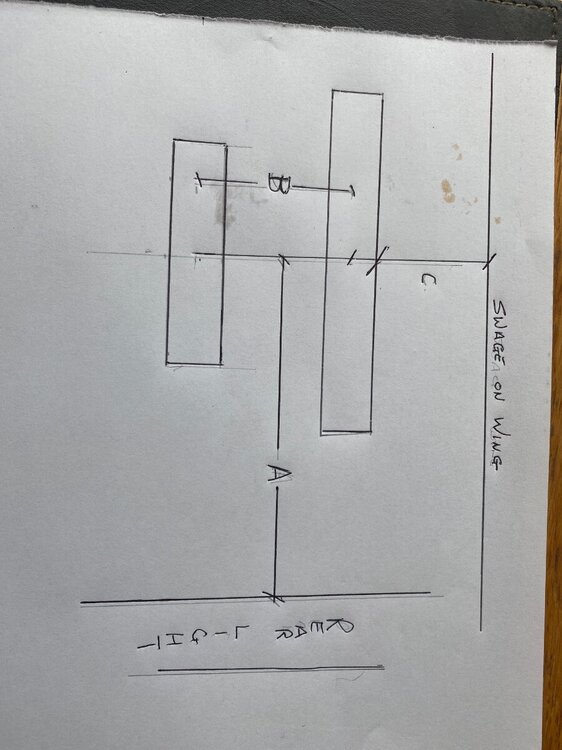

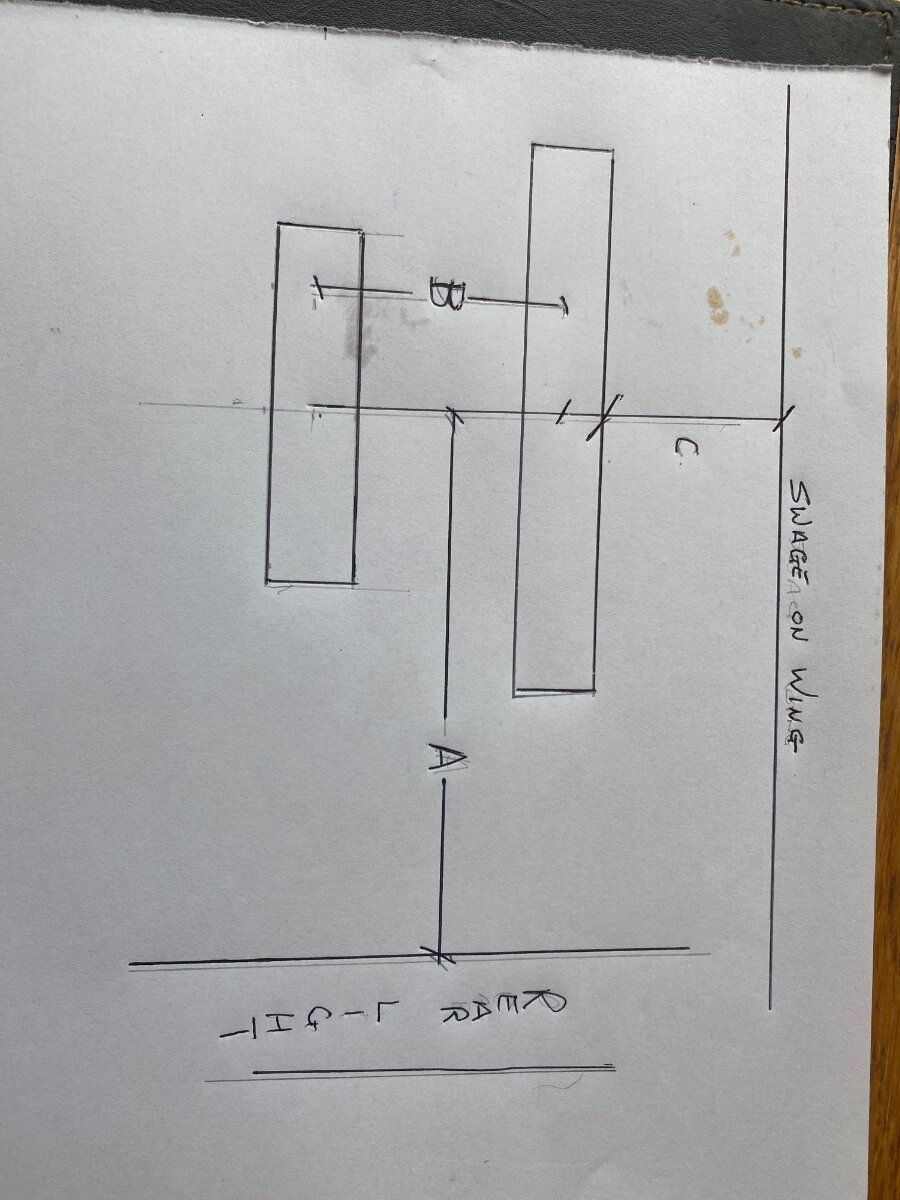

Drawing

A = distance to 2500 badge from the rear light to the center of the badge/marker light.

I have 10 1/2” and 12 1/2”from rear light

B = distance between center of the badge/marker light

i have 2 here. One is 1 1/2”and 2 1/16”

C = distance from sewage in the wing to center of badge

i have 6 1/2” and 9”to center of badge

I know perhaps very fussy but I want to get it right. Have searched and have lots conflicting information so very grateful if we can find the correct info

Roy

[Peter V W]

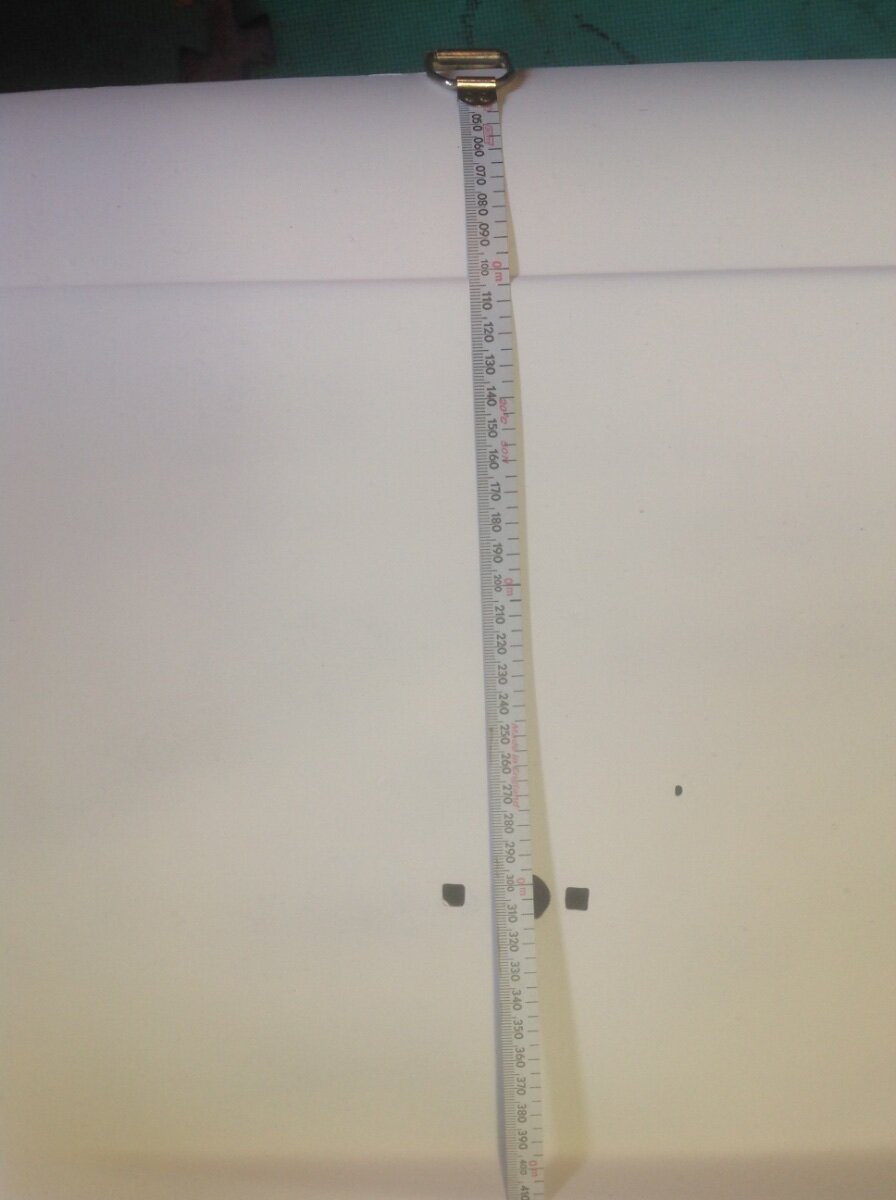

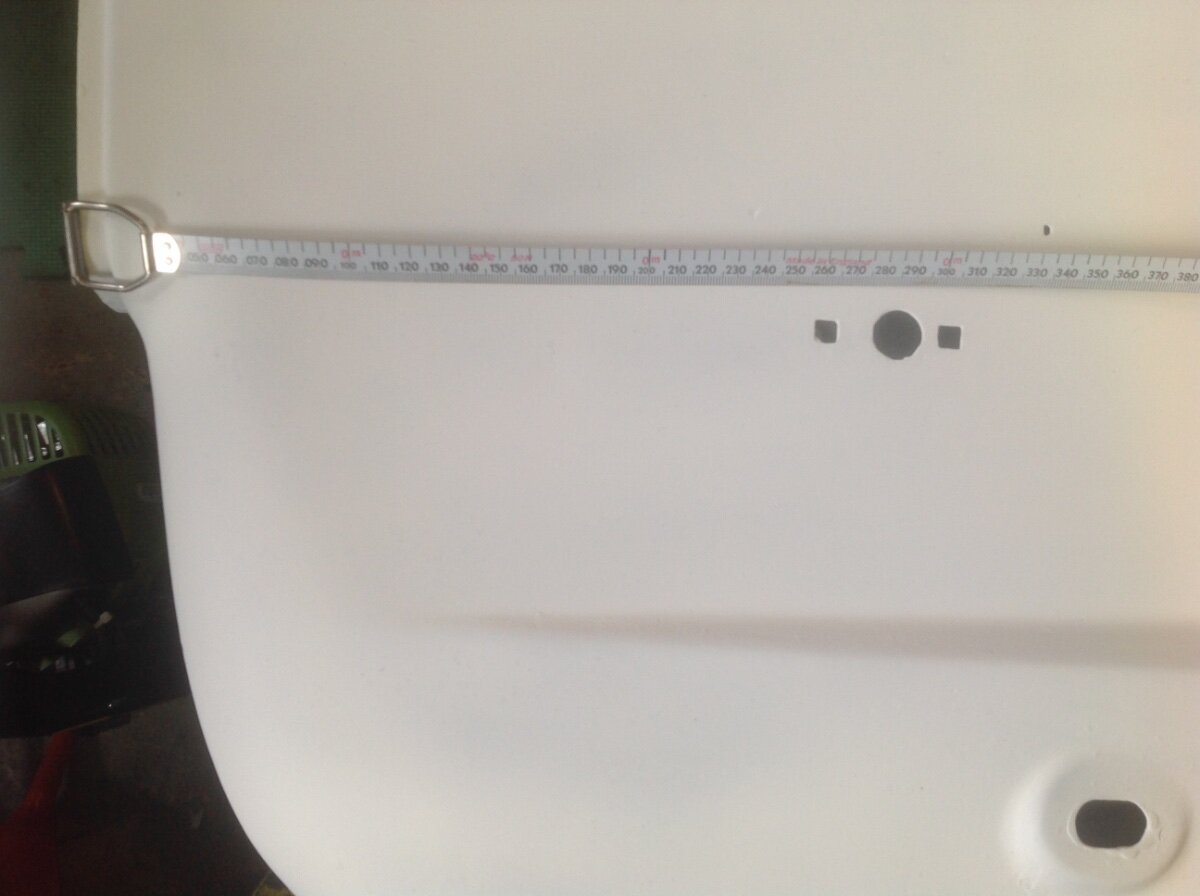

Roy, hope these photos help.

Peter

[roy53]

Is that from a known original wing Peter ?

 It is very close to one I have

thanks Roy

[Peter V W]

Yes Roy, original triumph wing.

regards

Peter

[Tim T]

Roy,

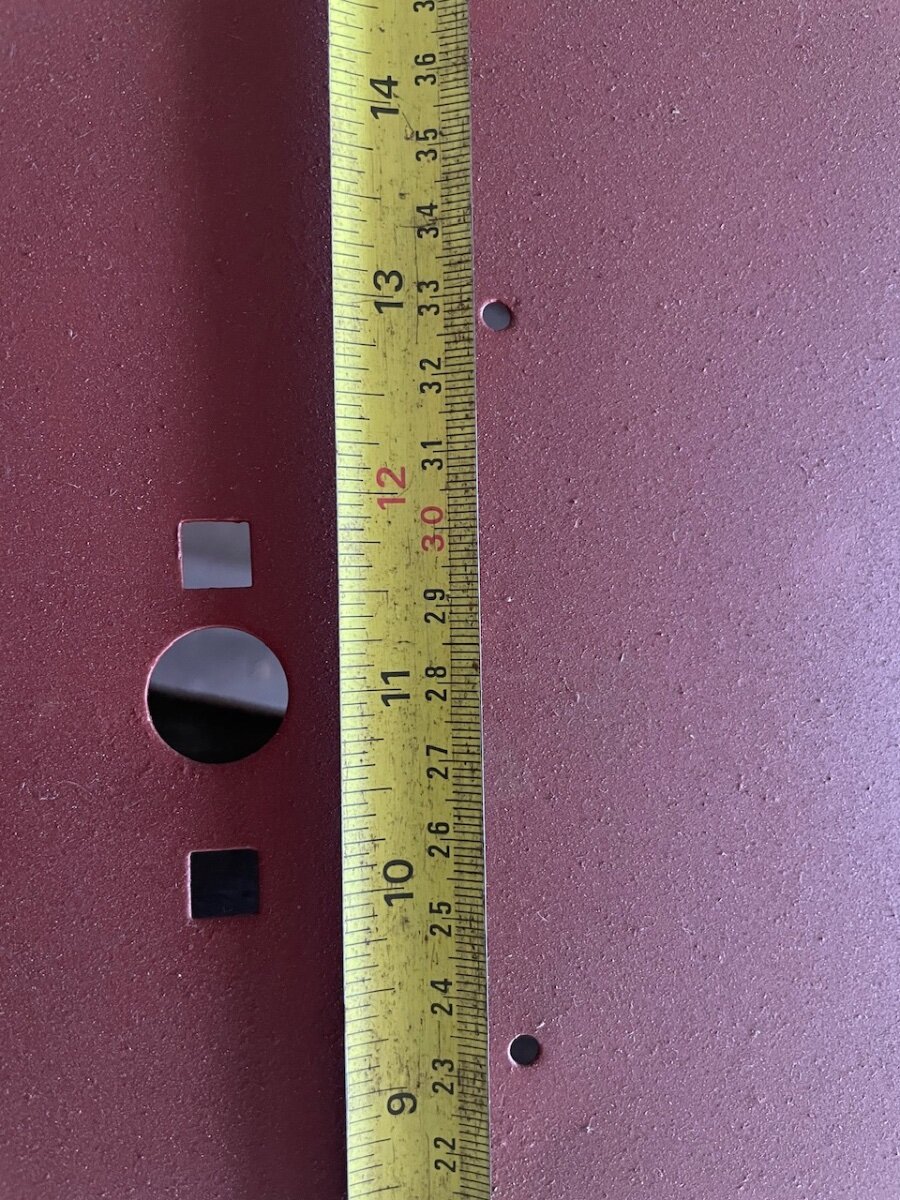

I have 2 sets of rear wings here and they are both the same as Peter’s dimensions.
Cheers,
Tim

[stuart]

Thats what Ive got here on a 5 wing too.

Stuart.

[Bezz]

Hi Roy hope this helps. (I get the Mr Millimetre bit!)

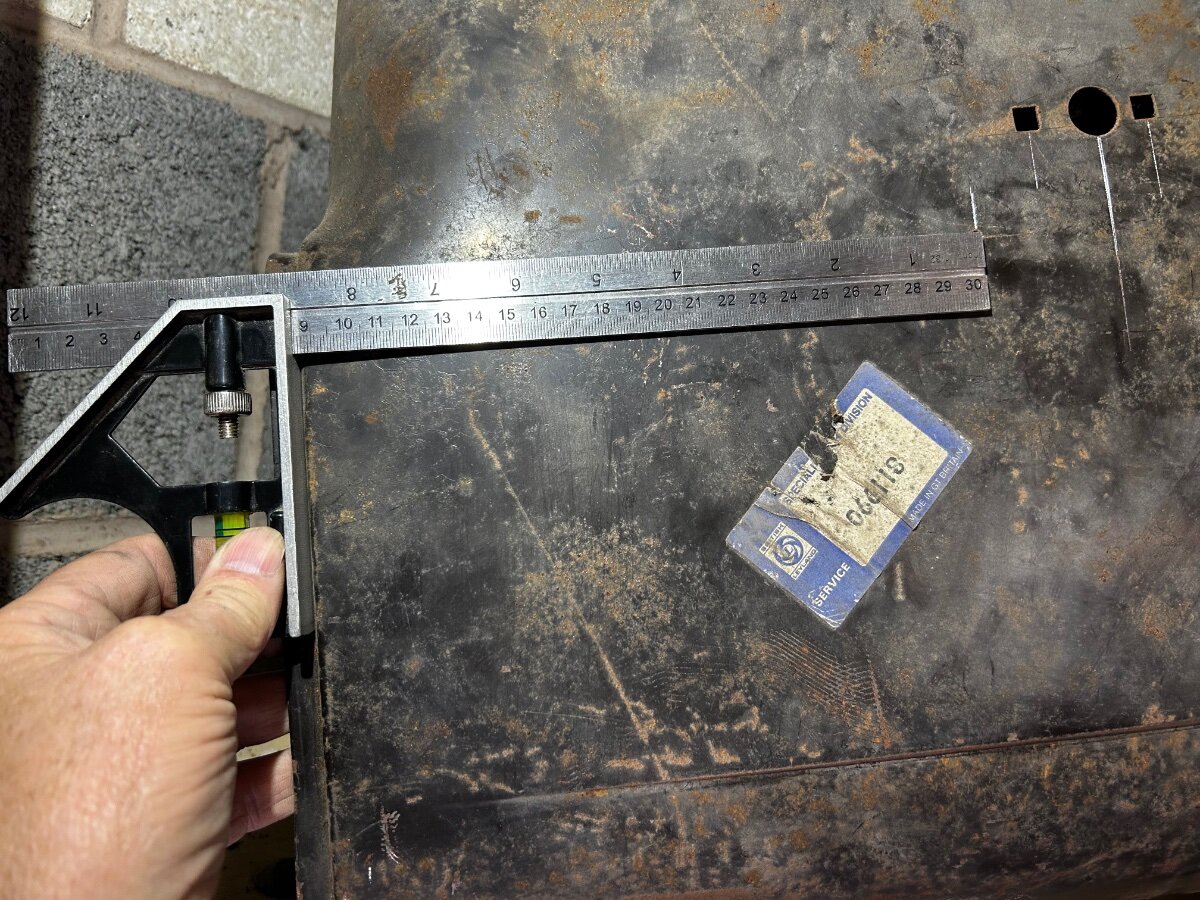

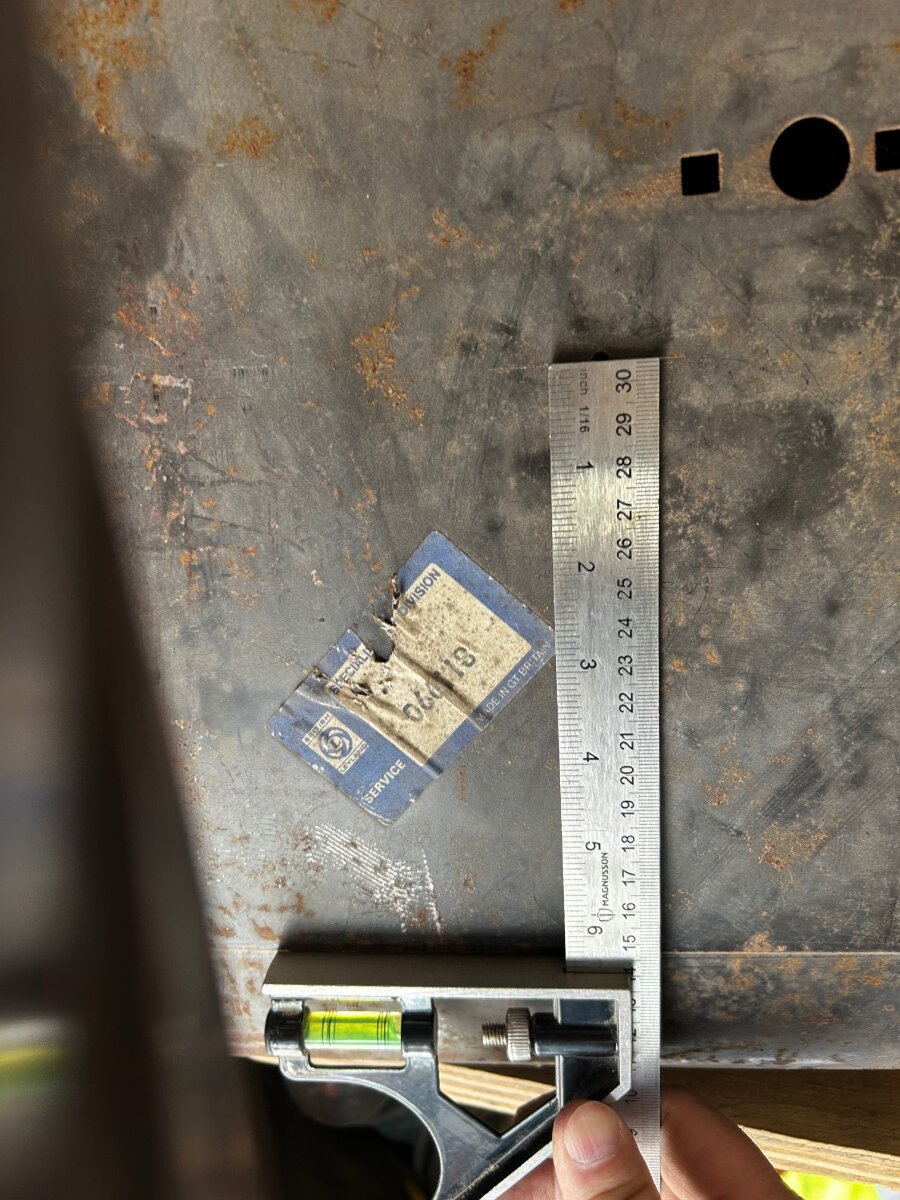

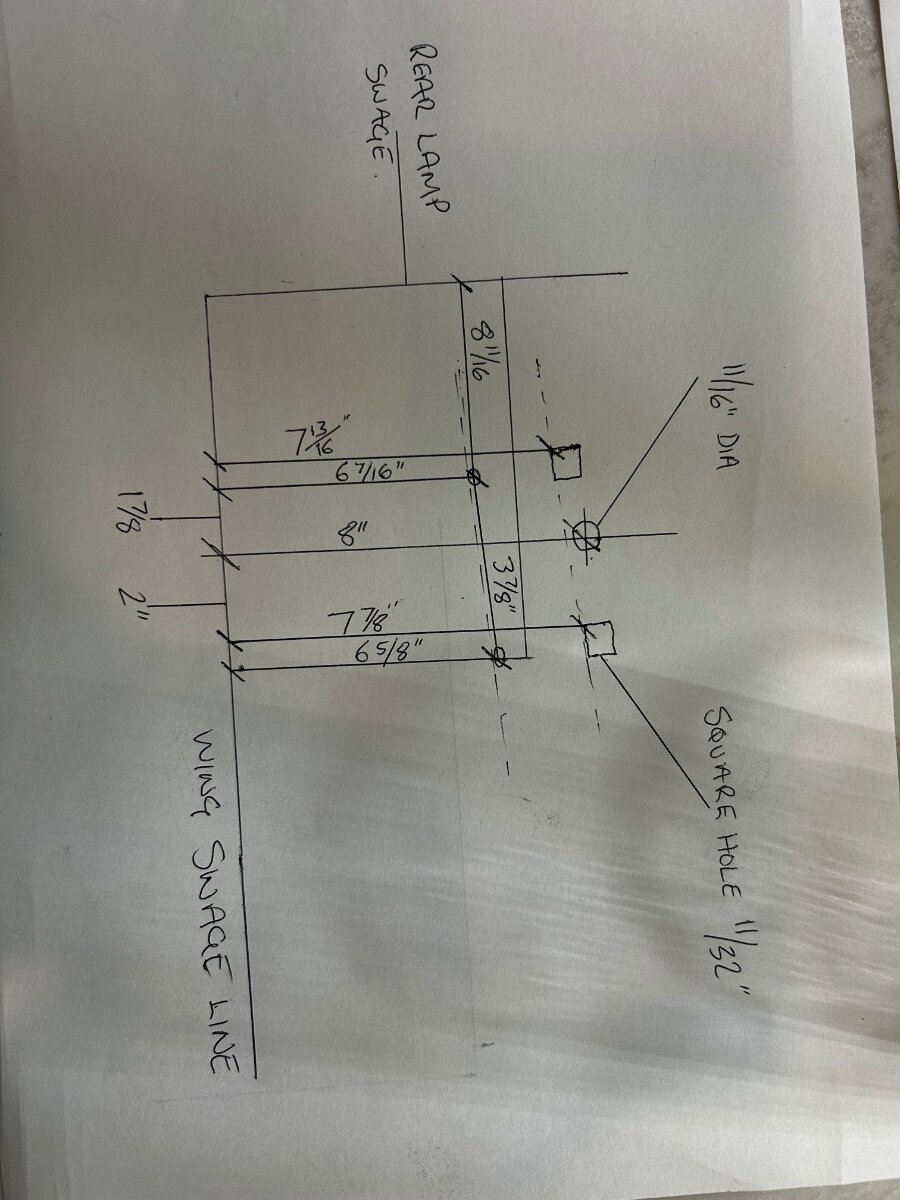

It’s a n/s/r and upside down! All measurements taken from the swage line on the wing and rear lamp swage using a set square. Not the best drawing but should suffice. I’m near Manchester call round any time if you need to double check. As you can see it’s a genuine panel and still in factory primer.

Cheers John
